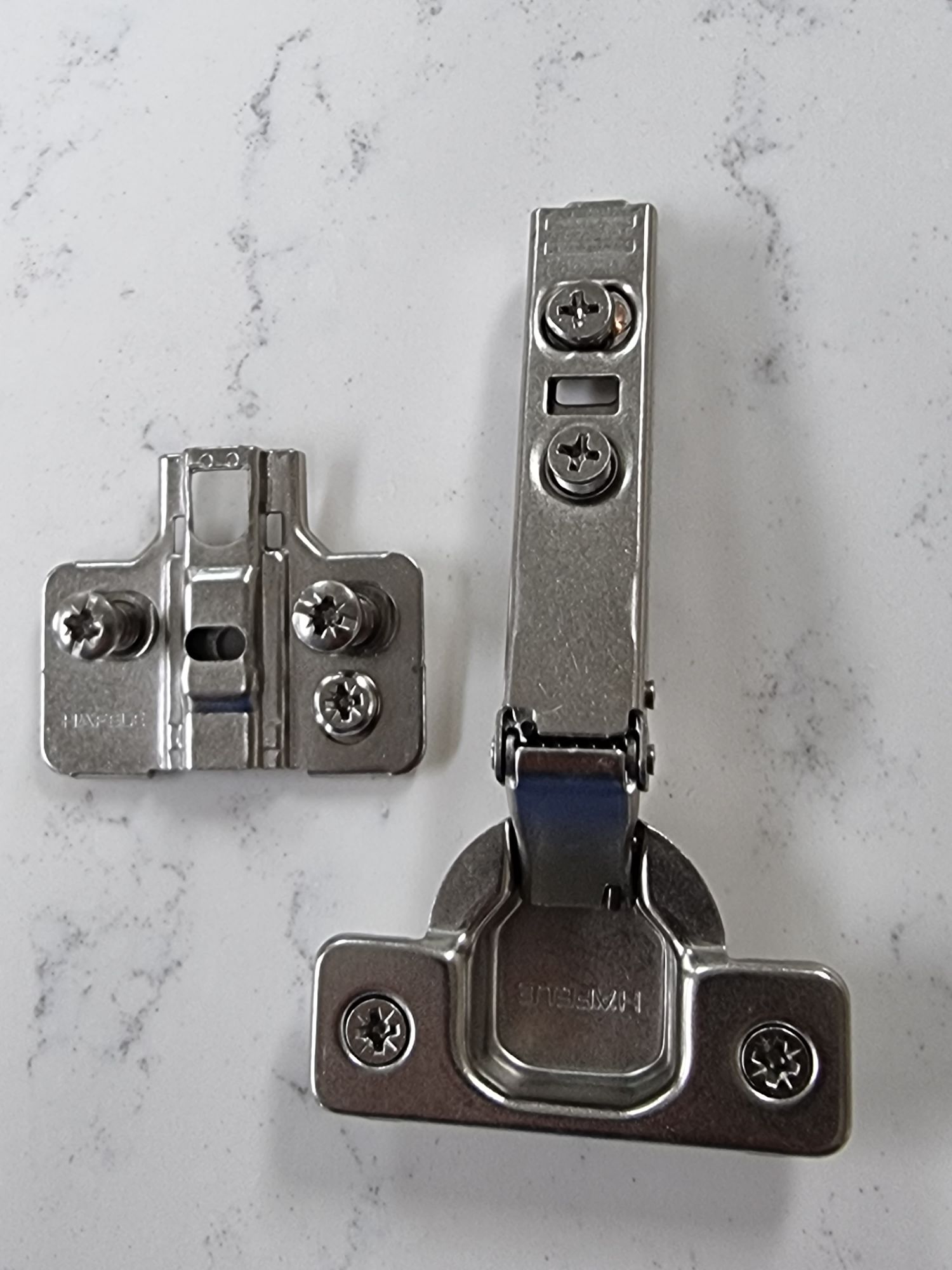

Hafele Soft Close Hinge BLUM Drilling Pattern 110° Degree

Description Hafele branded hinge the brand that you can trust BLUM drilling pattern So if you have an old BLUM hinge or same drilling pattern, instead of buying the brand BLUM you can use this as a replacement If you have standard hinge and you want to change to change it to soft close this also and ideal solution For door material: Wood Concealed hinge version: Full overlay Opening angle: 110° Material: Steel, Hinge arm: Steel Installation: Door to cabinet for quick fixing with SM quick fixing system Door processing for assembly: Cup drilling Adjustment facility: Side adjustment ±3 mm height adjustment ±2 mm (via mounting plate) depth adjustment ±2 mm For wooden door thickness: 14 – 26 mm Cup drilling depth: 12 mm 2 part Product code 311.04.257 and 311.70.620
