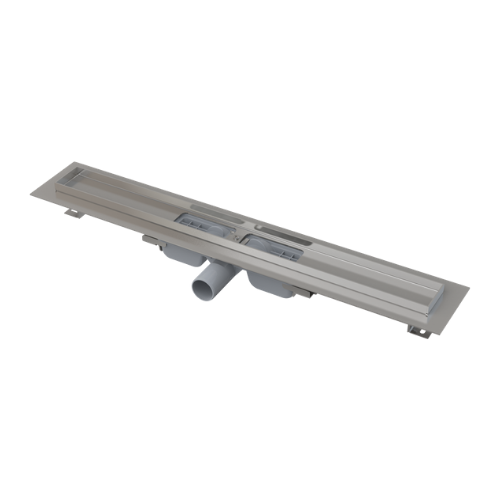

APZ101 LOW SHOWER DRAIN WITH AN EDGE FOR PERFORATED GRIDS

25 years guarantee ; Norms EN 1253 Material of shower drain: stainless steel 2 mm, AISI 304, DIN 1.4301, EN1253-1Application:For indoor use For drainage of floor-level showers For installation into open spaces or near the wall of the shower area For perforated stainless steel grids For wheelchair access For sites with limited floor height.Technical parameters Odour trap 28 mm Flow rate 35 l/min Resistance of odour trap against the pressure 575 Pa Waste pipe diameter 40 mm Minimum thickness of concrete 55 mm Total installation height 70 – 96 mm Load class K3 300 kg Scope of supply The shower drain is assembled with the odour trap Fixation set: screws Ø6×50 – 2 pcs, dowels Ø10 – 2 pcs Self-adhesive waterproofing tape Protective foil covering for the drain edges and odour trap Protective film for trap inlet Installation trough cover – polystyrene
