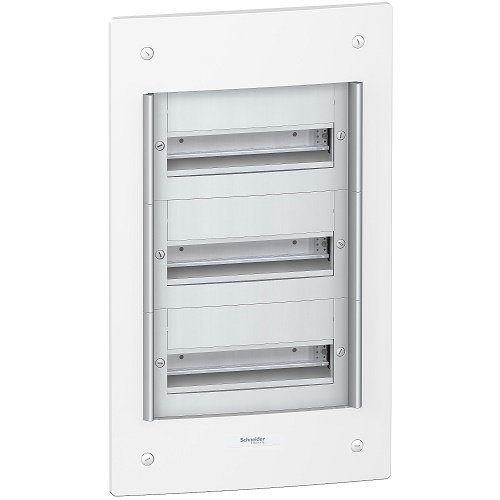

Main range Pragma product or component type Enclosure enclosure type Distribution enclosure width 366 mm wall: 396 mm outside: height 630 mm wall: 660 mm outside: depth 86 mm wall: 21 mm outside: Nb of 18 mm modules per row 13 Nb of horizontal rows 3 electrical insulation class Double insulation Class II provided equipment 1 x identification label 1 x marking kit 1 x blanking plate strip 3 x terminal block Type of door Without Complementary enclosure mounting Flush 9 mm pitches 26 total number of 18 mm modules 39 power dissipation in W 56 W [In] rated current 90 A type of rail DIN mounting plate description Without mounting plate cable entry Cable or tube Removable plates Side pre-cutouts comb busbar and distribution block compatibility XE compatible number of terminal blocks 1 earth (Quick) with 29 outgoers 2 phase / neutral (Quick) with 7 outgoers distribution block outgoers 4 x 25 mm² for earth 25 x 4 mm² for earth 2 x 35 mm² for phase / neutral 12 x 16 mm² for phase / neutral enclosure material Back part: technoplastic Front face: technoplastic colour Enclosure: white (RAL 9016) Front face: white (RAL 9016)
