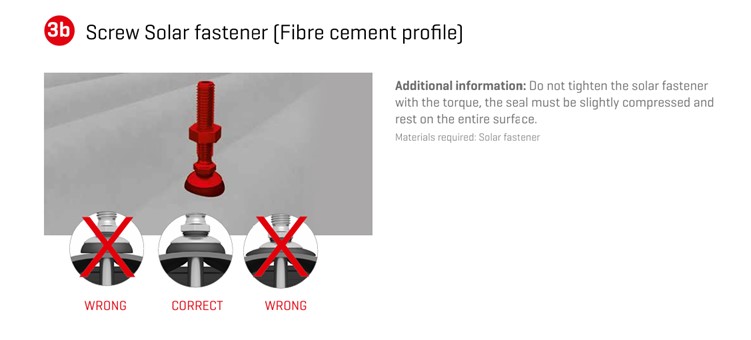

DescriptionTimber solar fixing kits used for Corrugated Fibre Roof Portrait, or Landscape orientation. Prices are listed below to attach quantities of solar panels on wooden rafter beams in portrait orientations. Using the K2 rafter fixing screw system, these are set out in rows of modules to match requirements. These can be adjusted to achieve uniform spread across the roof line of your corrugated covering. Hanger bolt product assembly data sheet Rafter solar panel fixing video installation instruction. Solar on roof rafter fixing kits are supplied by us to match many cement fiber and other corrugated roof timber framed buildings. Woodscrew end of the stainless steel rafter fixing is positioned into a pre drilled pilot hole, this is screwed through the corrugated covering into the rafter timbers underneath. The other end has an M10 threaded portion to accept nuts and top plate assembly, which accept the solar panel rails. Fully integrated PV fixing kit fit neatly onto the cement fiber structure. Making it a seamless interaction with wooden rafter; once fitted will provide watertight construction. Parts included in this kit are as follows: Solar panel rails Rail connectors Timber Rafter fixing brackets T bolts and nuts Rail end caps Mid clamps 30-43mm End clamps 30-43mm Cable tidy edge clips Cable ties Solar hanger bolt correct fitting Solar hanger bolts are available for metal or wooden sub structure. Click here for metal purling kits. Metal roof solar kits | Self cutting Z purlin farm roof Available in various optional panel or kw sizes for discerning statements, (ask for further details) a classic design with every conceivable part required to complete the fixing part of your installation. You can supply your own modules or we can offer our house brand high quality products, with anti-reflective coating to increase light absorption. 10-year product and 25-years performance guarantee. See our low cost solar panels. *Product prices listed below are for portrait solar fixing equipment parts only* PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES: 30-33mm, 34-36mm, 37-38mm, 39-41mm, 42-43mm, (44-50mm limited stock) If you do not advise the size of solar panel clamps needed, we will send out universal 32-42mm Timber solar fixing kits in portrait to attach our purling solar kits, can be used as corrugated PV kits Click on this link to see what is in the kit: Corrugated roof rafter fixing kits in portrait orientation We offer rafter solar panel fixing kits based upon 400-450mm rafter spacings. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing. Select photo below to view our complete range of solar panel fixing kits. Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
