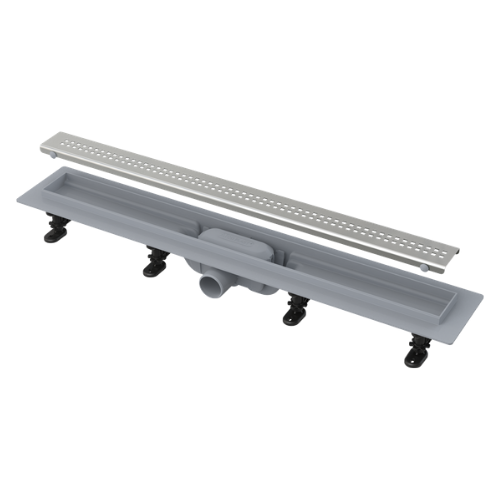

Application For indoor use For drainage of floor-level showers For installation into open spaces or near the wall of the shower area For wheelchair access, Technical parameters Odor trap combined with a water seal 29 mm Flow of the inlet grid 28 l/min Resistance of odour trap against the pressure 640 Pa Waste outlet diameter 40 mm Minimum thickness of concrete 62 mm Total installation height 75 – 110 mm Load class K3 300 kg Scope of supply Linear shower drain Fixation set: screw Ø4 – 4 pcs, 2×38, dowel Ø8 – 4 pcs Self-adhesive waterproofing tape Stainless steel perforated grid Simple 10 in matt with a protective film Fixation set for attaching the adjustable legs: screw 4.2×9.5 – 4 pcs Combined odour trap SMART Height adjustable feet 2 pcs
